WD-Ni40A
PRODUCT
Introduction
WD-Ni40 is a hardfacing alloy, which resists wear, heat, corrosion and galling. It displays exceptional impact resistance and excellent machinability. WD-Ni40 cannot be hot or cold-worked, but can be hot formed while in the plastic condition. It has little tendency to warp annealed work to which it is applied.
Relative Brand
Deloro® 40
Chemical Composition(%)
C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B |
---|---|---|---|---|---|---|---|---|---|
0.3 |
7.5 | 3.6 | - |
Bal |
≤5.0 |
≤0.1 | ≤0.1 | - |
1.7 |
Deposit Characteristic
Hardness |
HRC38-42 |
Particle Size (µm)
180/53, 180/63, 150/45, 150/63, 150/53, 125/38, 250/45, 45/20, 53/20
Other Forms
Rod, Electrode
PRODUCTION PROCESS
Smelting
Pour molten steel
Gas atomization
Collection
Screening
Polish, Griding
Mixing
WELDING PROCESS
Plasma Transferred Arc
Laser Cladding
Spray Fuse
HVOF
APPLICATION

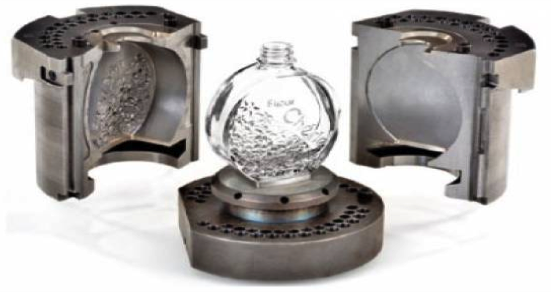

Glass Industry Plungers
Mold Components
PACKING & SHIPPING
Packing
Label
Brand, Neutral or Customized
Lead time
7-10 working days
Delivery
Courier: 3 - 5 days
Air: 5 - 7 days
Sea: 30 - 50 days
