WD-Co6

PRODUCT

INTRODUCTION

WISDOM WD-Co6 cobalt based bare cast rod and is the most widely used of the cobalt alloys. It is regarded as the industry standard for general-purpose wear resistance applications, has excellent resistance to many forms of mechanical and chemical degradation over a wide temperature range, and retains a reasonable level of hardness up to 500°C (930°F)



Common Names: Stellite 6, Bishilite No.6, Polystel 6

Standard: AWS 5.21-2001 ERCoCr-A



CHEMICAL COMPOSITION(%)

C

Si

Mn

Mo

Cr

W

Ni

Fe

Co

1.15

1.0

≤1.0

≤1.0

29.0

4.5

≤3.0

≤3.0

Rest



CHARACTERISTIC

Abrasion Resistance

Good

Impact Resistance

Good

Corrosion Resistance

Good

Hardness

HRC 40-46

Deposit Layers

2 Max

Deposit Cross Checks

* Possible

Magnetic

No

Hot Wear Hardness

Good

Machinability

Carbide Tools



Diamenter (mm)

2.7, 3.2, 4.0, 4.8, 5.0, 6.4, 8.0

Length (mm)

350, 500, 1000, 2000 or customized

Other forms

Powder, Electrode

PRODUCTION PROCESS

Smelting

Horizontal continuous casting

Cooling

Straightening

Cutting

WELDING PROCESS

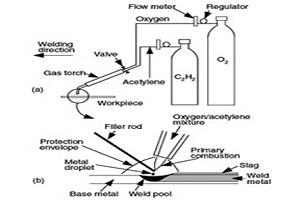

OAW (OXY, OFW)



TIG (GTAW)



ERW(Electric Resistance Welding)

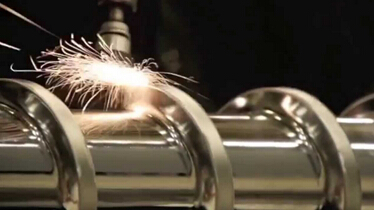

Other Automation System



Robotic

APPLICATION

Engine valve tip head and valve seat

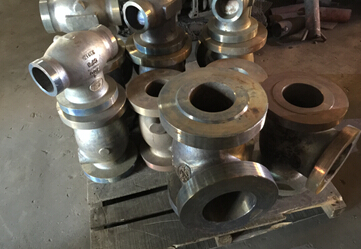

Valve

high-pressure high-temperature valve

Fluid Flow Valves

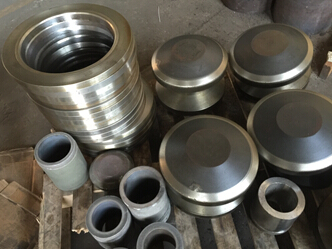

Valve Seats

Sleeve, Roll Bushings

Valve Bearing Surface



Pump

Pump Shafts & Sleeves

Cutting

Shear Blades, Tong bits

Hot Cutting & Rotary Knives

Extrusion

Extrusion Screws

PACKING AND SHIPPING

Packaging

For different forms we use different packing as pictures below

1meter pack in 5kg per tube 4 tubes in one carton Exporting wooden box
350mm length packing 350mm carton packing 2 meter length packing

Label

WISDOM Brand, Neutral or Customized

Lead time

Less than 500kg: 7-10 working days

500-1000kg: 10-15 working days

More than 1000kg: 15-20 working days

Delivery

Courier/Air/Sea
