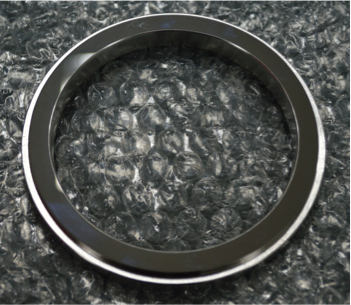

Valve Seat

Introduction

WD-Co 6 is the most widely used of the wear resistant cobalt-based alloys and exhibits good all-round performance. It is regarded as the industry standard for general-purpose wear resistance applications, has excellent resistance to many forms of mechanical and chemical degradation over a wide temperature range, and retains a reasonable level of hardness up to 500°C (930°F). It also has good resistance to impact and cavitation erosion. WD-Co 6 alloy material is ideally suited to a variety of hardfacing processes and can be made to investment casting & P/M components. WD-Co 6 casting valve seats are widely used in oil and gas industry.

Alloy Material Equivalent: Stellite 6

Standard: AMS 5387D/2009 (UNS R30006)

Manufacturing: Investment Casting

Chemical Analysis

Co

Cr

W

C

Ni

Mo

Others

Bal.

27 - 32

4 - 6

0.9 - 1.4

< 3.0

< 1.0

Fe, Si, Mn

Physical & Mechanical Properties

Hardness

Density

Melting Range

Tensile Strength (Mpa)

Yield Strength (Mpa)

Elongation (%)

36 - 45 HRC

8.44 g/cm3

1285 - 1410 ºC

915

750

0.8

Common Dimensions

SN.

Specification

OD (mm)

ID (mm)

H (mm)

1

1-13/16” – 10M

63.4

46.48

9.47

2

2-1/16” 5M 15M FC

69.8

53.2

9.48

3

2-9/16” 5M 10M

85.65

65.9

9.47

4

2-9/16” 5M 10M

95.15

65.8

14.22

5

3-1/16“ 10MFC

99.9

79.8

9.47

6

3-1/16“ 15M

111.05

78.74

14.22

7

4-1/16” 5M

130.05

105.2

9.47

8

4-1/16” 10MFC

130.05

104.6

14.22

9

4-1/16” 15MFC

139.6

104.6

17.42

10

5-1/8” 10M

161.83

131.2

17.42

11

7-1/16” 15M

235.08

180.4

22.22

12

7-1/16” 10M

222.25

180.97

17.27

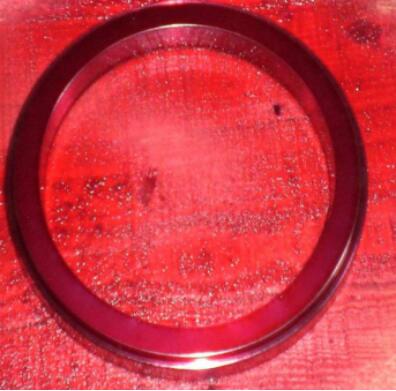

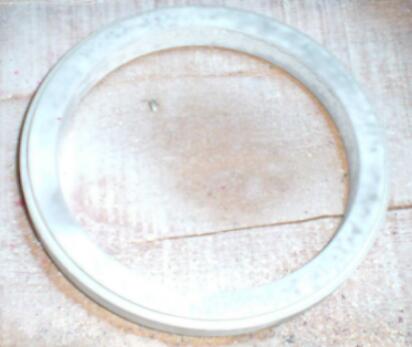

Penetrant Inspection

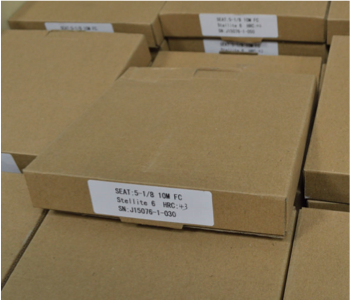

Packaging
