SG100 Plasma Gun
Introduction
Type SG100 is considered by the industry as a flexible and durable plasma spray gun, which can be used in many applications to output 40KW of energy in the subsonic, Mach 1 and Mach 2 modes.

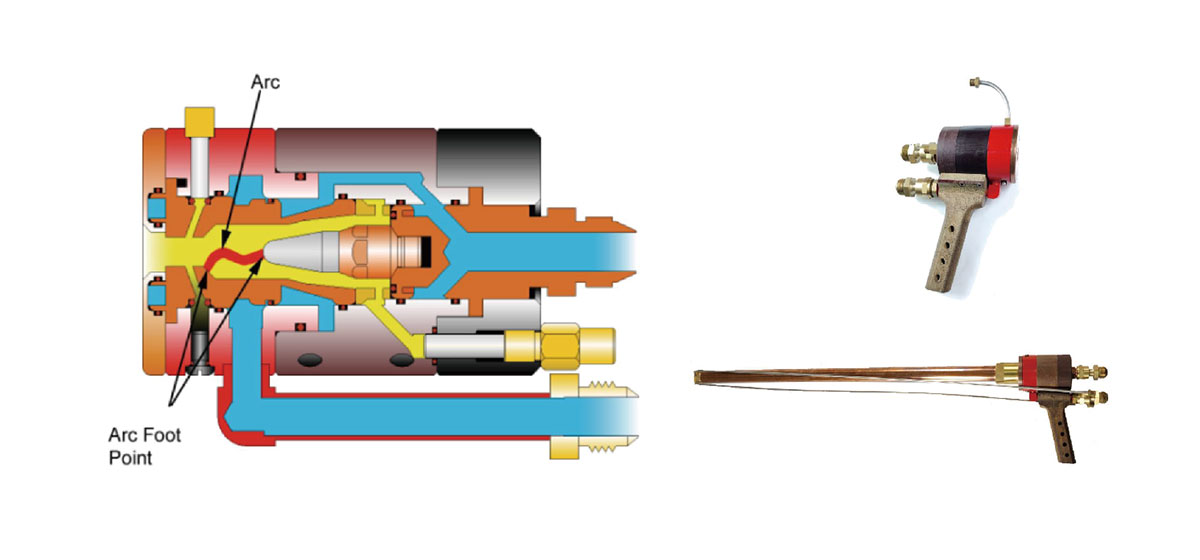

In addition, the SG100 can also provide an inner hole gun configuration to correspond to the requirements of the inner hole coating spraying.
Equivalent: Praxair SG100
Customer Value
SG100 Gun Physical Parameters
|
Dimension(mm) |
137*143*175 |
|
Weight(kg) |
1.8 |
|
Maximum power(kw) |
40 |
|
Cooling water flow(LPM) |
14 |
|
Cooling water pressure(bar) |
13.5 |
|
Cooling water temperature (degree) |
18 |
|
Deposition efficiency |
＜80% |

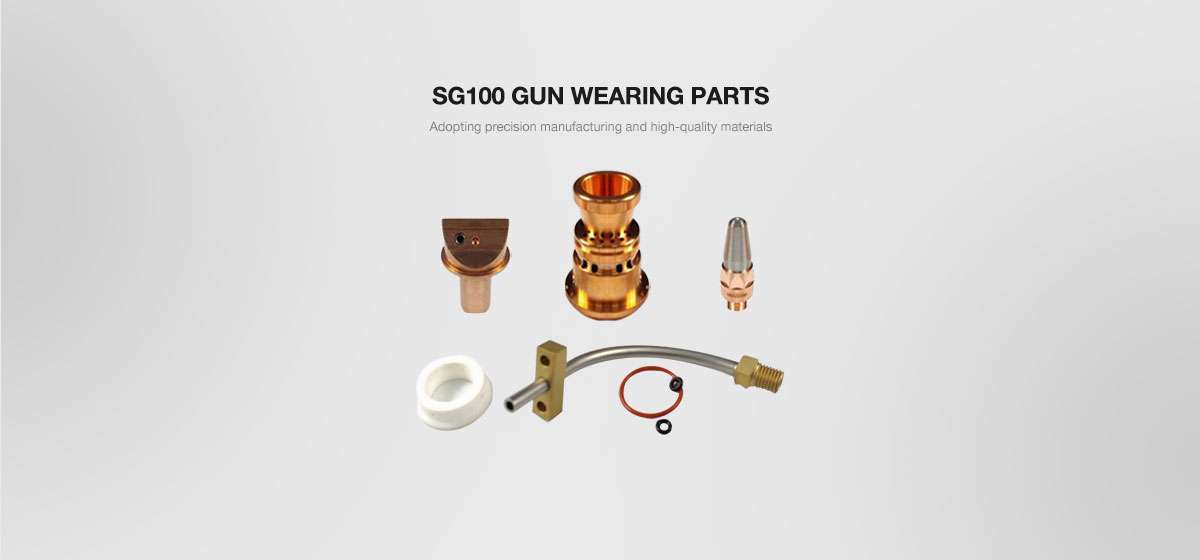

SG100 gun wearing parts
|
OEM No. |
Wearing parts Name |
|
895-2083-730 |
Nozzle |
|
895-1083A-720 |
Electrode |
|
03083-112 |
Gas distribution ring |
|
01083A-122N |
Front Gun body |
|
01083B-200 |
Center Gun body |
|
01083B-205I |
Rear Gun body |
|
01083A-108 |
Cathode base |
|
2083-123 |
Plasma gun cap |
|
5004378 |
90 degree powder feeding tube |
|
7000611 |
Screws |
|
7000435 |
Screws |
|
7000422 |
Set screw |
