Inconel625
INTRODUCTION
Inconel 625 is a nickel as a main component of super alloys. From molybdenum, niobium solid solution strengthening effect of nickel-chromium alloy contained at a low temperature to 1093 ℃, with ultra-high strength, exceptional fatigue resistance, commonly specifications used for thermal spray is 1.6mm, 2.0mm, 3.17mm.
Equivalent to: TaFa 71T ,PMET 860 ,Metco 8625
CHEMICAL COMPOSITION
Grade |
Ni% |
Cr% |
Mo% |
Nb+Ta% |
Fe% |
---|---|---|---|---|---|
Inconel 625 |
Min 58 |
20-23 |
8~10 |
3.15-4.15 |
Max 5 |
Deposit Characteristics
Grade |
Density | Melting Point |
---|---|---|
Inconel 625 |
8.4g/cm3 |
1290°C-1350°C |
Typical Deposit Characteristics
Typical Hardness |
Bond Strength | Deposit Rate | Deposit Efficiency | Machine Ability |
---|---|---|---|---|
HRB 92 |
7000 psi |
11 lbs/hr/100A | 70% | Good |
Diamenter (mm)
1.6, 2.0 , 3.17
Advantage:
1. Reasonable price, regular sizes stock, short delivery time;
2. International production technology, quality guaranteed;
3. 100% replacement / Refund for problematic items;
Production process
Spray process
Arc Spray
Arc spraying is the use of electric arc burning in two consecutive fed between the wires to melt the metal, with a high velocity gas stream molten metal atomization, and the atomization of the sprayed metal particles so that they accelerate the work to form a coating technology .
Flame Spray
The use of a flame as the heat source, the metal and non-heated to a molten state, forming a mist flow in the state of high-speed air jet to the substrate, the injection of the molten minute particles impact upon the substrate above, plastic deformation, into a sheet shape superimposed sedimentary layers.
Application
Backing material used for Arc spray
Inconel 625 is a nickel as a main component of super alloys. From molybdenum, niobium solid solution strengthening effect of nickel-chromium alloy contained at a low temperature to 1093 ℃, with ultra-high strength, exceptional fatigue resistance.
Backing material used for Flame spray
Although the alloy for high temperature strength and design, but the alloy chromium, high molybdenum content for a number of corrosive media, from highly oxidizing environment to general corrosion environment, are highly pitting anti-corrosion fission, performance a superior corrosion resistant properties.
Application
To chloride contaminated media such as sea water, ground water, neutral salt and brine, INCONEL 625 also has superior corrosion resistance. Mainly used in aviation engine parts, jet engines, aerospace structural components, chemical equipment, bellows compensator expansion joint, modern garbage treatment equipment, contacts, sea and withstand high mechanical stress of the occasion, marine structures, saline environment.
Packing and shipping

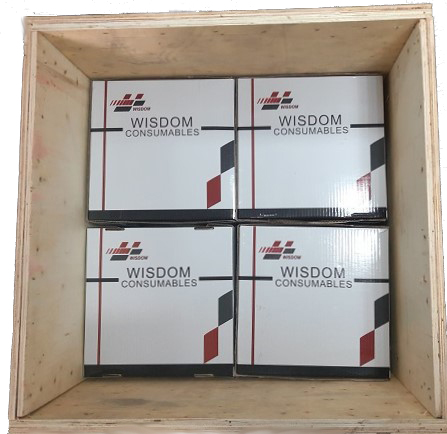

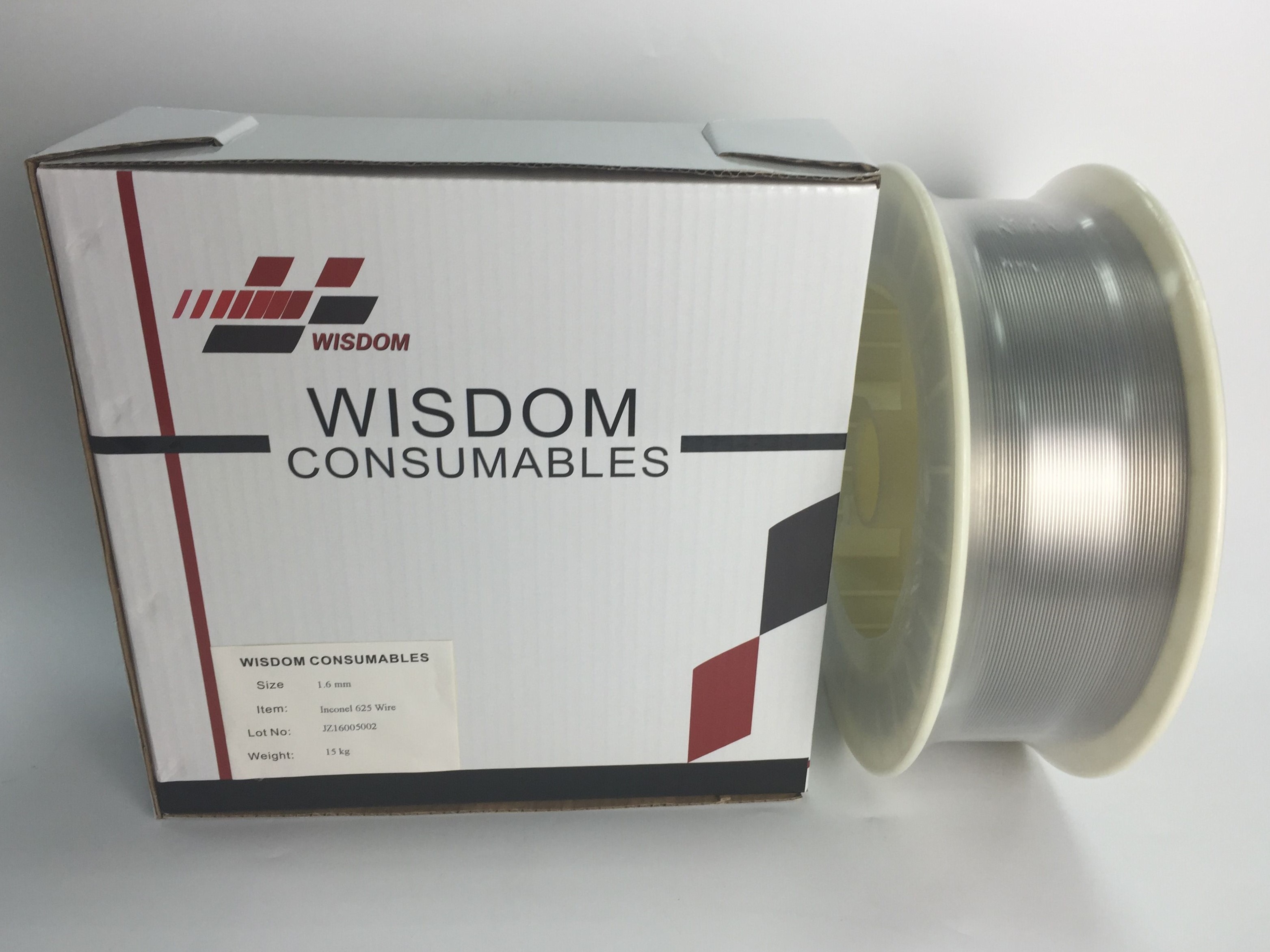

Packaging
STANDARD SIZE&PACKING
Diameter |
Dimension Tolerance |
Packing |
Wire Weight |
---|---|---|---|
1/16"(1.6mm) |
+0/-0.05 |
D 300 Spool |
15kgs(33 lbs)/spool |
2.0mm |
+0/-0.05 |
D 300 Spool |
15kgs(33 lbs)/spool |
1/8"(3.17mm) |
+0/-0.05 |
Coil Form |
20-400kgs/coil |
Other sizes can be produced based on customers’ requirement.
Label
Brand, Neutral or Customized
Delivery
Courier/Air/Sea
Normally we keep stock of 1.6mm and we can delivery in 1-3 days.
For mass order, delivery time depends on the quantity.
