Data SheetHCr Carbide (P)
INTRODUCTION
HCr Carbide (P) is a cored wire specifically designed for arc spray systems. It produces a hard, well bonded coating that is abrasive and corrosion resistant. HCr Carbide (P) can be easily machined with carbide tools, yielding a smooth, low coefficient of friction surface finish, suitable for a number of applications.
Equivalent
Metco SM 8222, PMET 226
CHEMICAL COMPOSITION
|
C% | Cr% | Si% | Fe% | Mn% |
|---|---|---|---|---|
| 5 | 28 | 1 | Bal |
1 |
Typical Deposit Characteristics
|
Hardness |
Bond Strength | Deposit Rate | Deposit Efficiency | Wire Coverage | Surface Finish |
|---|---|---|---|---|---|
|
HRC 55 |
5250 psi |
8 lbs/ hr /100A | 70% | 1.0 oz / ft2 / mil | Grind* |
* Grind using aluminum oxide
Diamenter (mm)
1.6, 2.0
Advantage
1. Reasonable price, regular sizes stock, short delivery time
2. International production technology, quality guaranteed
3. 100% replacement / Refund for problematic items
Production process
Spray process
Arc Spray
Arc spraying is the use of electric arc burning in two consecutive fed between the wires to melt the metal, with a high velocity gas stream molten metal atomization, and the atomization of the sprayed metal particles so that they accelerate the work to form a coating technology .
Application
Boiler Tubes & Tube Shields
Fan Blades
Food Processing
Paper Processing

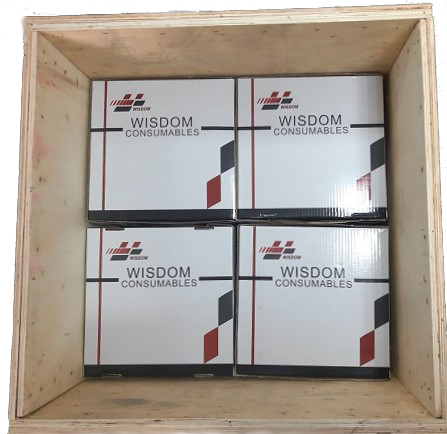

Packing and shipping
Packaging

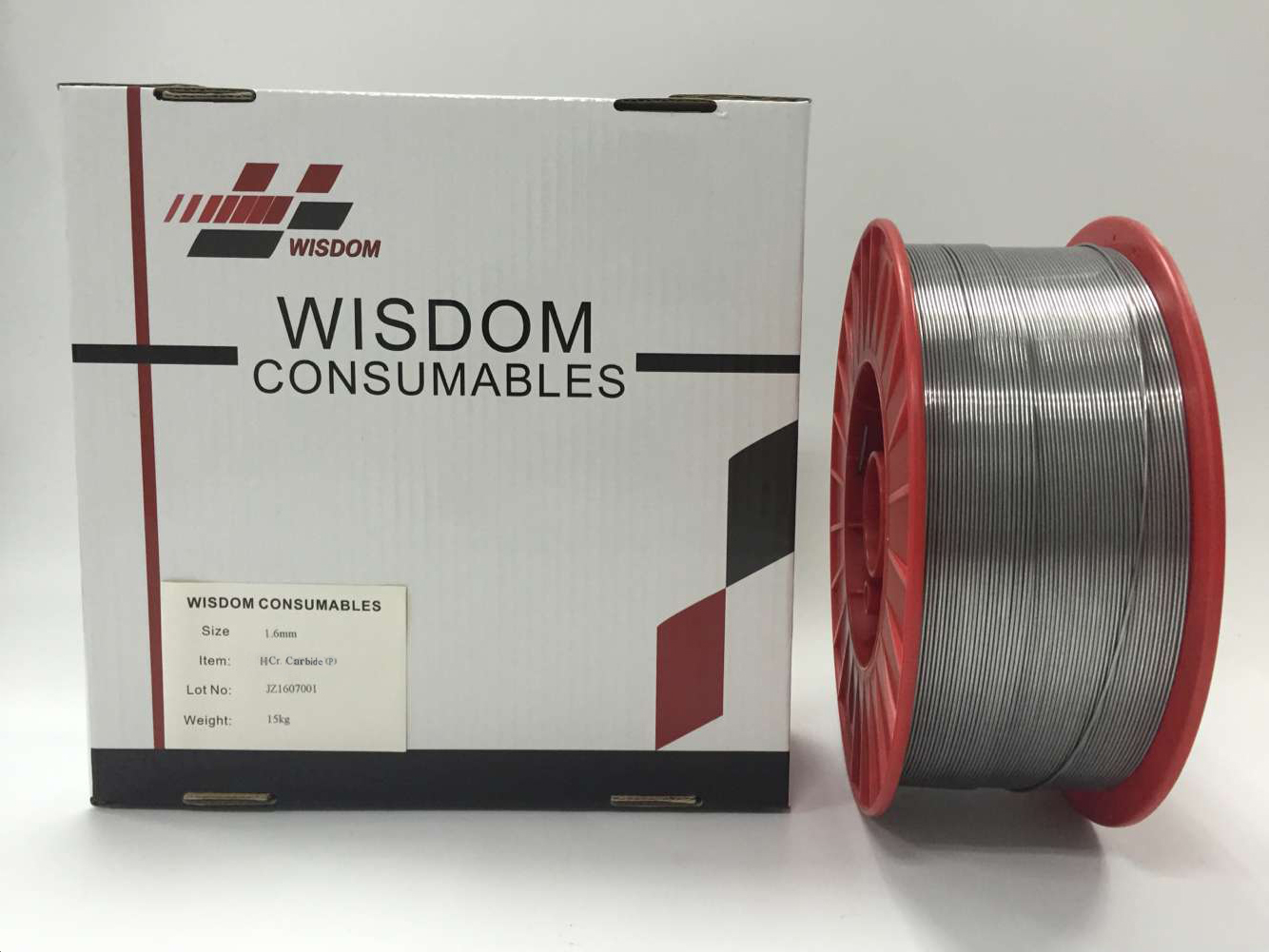

STANDARD SIZE&PACKING
|
Diameter |
Diameter Tolerance |
Packing |
Wire Weight |
|---|---|---|---|
|
1/16"(1.6mm) |
+0/-0.05 |
D270 Spool |
15kgs(33 lbs)/spool |
|
2.0mm |
+0/-0.05 |
D270 Spool |
15kgs(33 lbs)/spool |
Label
Brand, Neutral or Customized
Lead time
For mass order, lead time depends on quantity
100-200kg: 1 week
Delivery
Courier, Air, Sea
