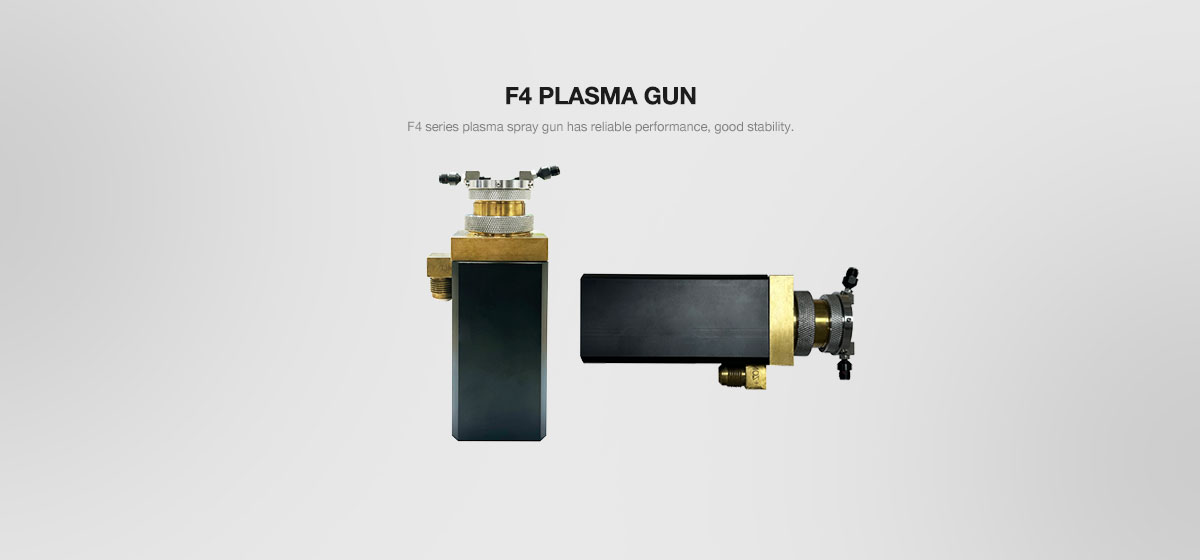

F4 Plasma Gun
Introduction
F4 series plasma spray gun has reliable performance, good stability, and is loved by customers for decades, and can easily complete the high quality coating that meets or exceeds customer specifications.
This gun type in the engineering design strives to facilitate the operation, excellence, can provide high quality plasma spraying coating for a variety of materials, including metals, metal alloys, carbide, metal ceramics, etc.。
Equivalent: Metco F4MB-XL
Customer Value
F4 Gun Physical Parameters
|
Dimension(mm) |
218*105*64 |
|
Weight(kg) |
2.5 |
|
Maximum power(kw) |
55 |
|
Cooling water flow(LPM) |
14 |
|
Cooling water pressure(bar) |
13.5 |
|
Cooling water temperature (degree) |
0.5-25 |
|
Deposition efficiency |
＜80% |

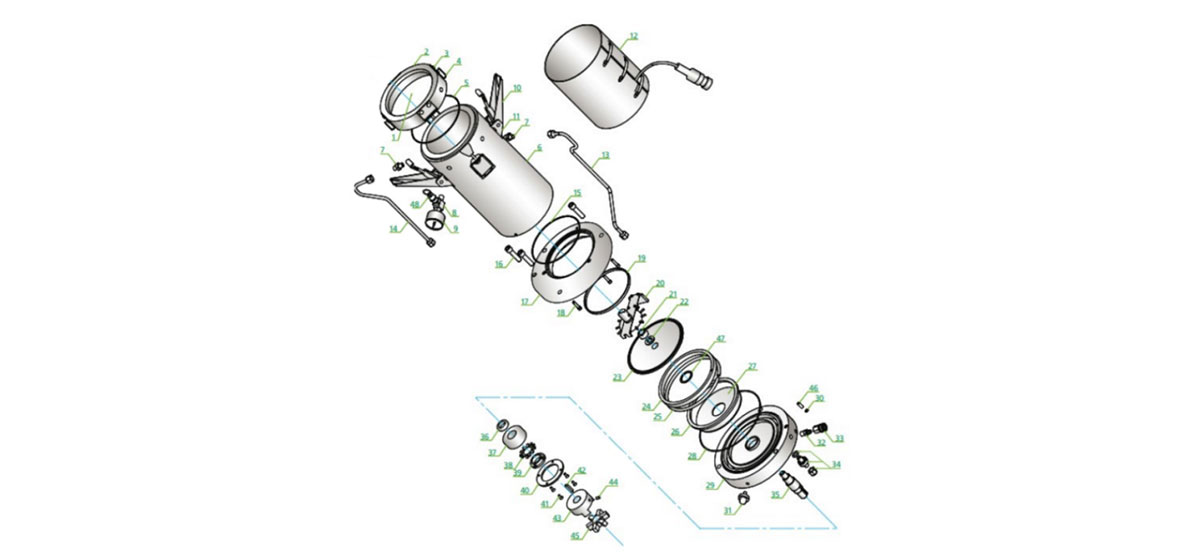

F4 gun wearing parts
|
OEM No. |
Wearing parts Name |
|
300001 |
Electrode |
|
300002 |
Nozzle(6mm) |
|
300015 |
Powder feeder |
|
F201115 |
Powder Injector(1.8mm) |
|
F400302 |
Front locking ring |
|
F201312 |
Rear locking ring |
|
TRPP57746 |
Seal ring |
|
300041 |
Seal ring |
|
300009 |
Front gun body |
|
F4MB-XL83699 |
Center Gun Body |
|
F200044 |
Insulator Assembly |
|
F300048 |
Gas Ring |
|
300141 |
Screw, M4*10 |
|
300140 |
Insulating Screw |
|
F4MB-XL85897 |
Rear Gun Body Assembly |
|
F4MB-XL85988 |
Over Assembly |
|
F4MB-XL83787 |
Screw, M5*0.8mm |
|
300139 |
Positioning Screw |
|
300005 |
O-ring，NBR, 70.44*1mm（Pkg.of 2） |
