CuSn6P

INTRODUCTION

CuSn6P is useful for thermal spray copper tin bronzes (Cu-Sn 6-8 %) and some brasses (Cu-Zn). Also suitable for joining wrought copper-tin bronzes and brasses to cast iron and carbon steel. This is recommended for repairing wrought bronzes (Cu-Sn); for surfacing on brasses, steels and cast iron.

CHEMICAL COMPOSITION

Cu%

Sn%P%Other
Rest 5.5 0.2 <0.5

Equivalent

Sprabronze S

Typical Physical Properties

Solids Temperature
Density
ElongationLiquids TemperatureTensile StrengthBrinell Hardness
950°C 8.86kg/dm3 20% 1050°C 260N/mm2 80HB

Advantage:

Resonable price, in stock for regular sizes, short lead time

International production technology, quality guaranteed

100% replacement / refund (delivery included) for problematic items

Spray process

Arc Spray

Arc spraying is the use of electric arc burning in two consecutive fed between the wires to melt the metal, with a high velocity gas stream molten metal atomization, and the atomization of the sprayed metal particles so that they accelerate the work to form a coating technology .

Flame Spray

The use of a flame as the heat source, the metal and non-heated to a molten state, forming a mist flow in the state of high-speed air jet to the substrate, the injection of the molten minute particles impact upon the substrate above, plastic deformation, into a sheet shape superimposed sedimentary layers.

Application

Useful for Joining base metals of similar composition

Construction of equipment for the chemical industry and petrochemical industry

Naval constructions and installations for sea water desalination, repair works

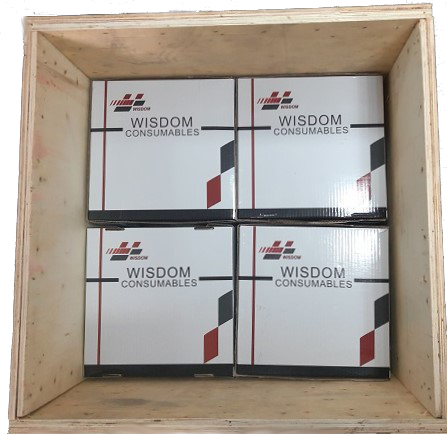

Packing and shipping

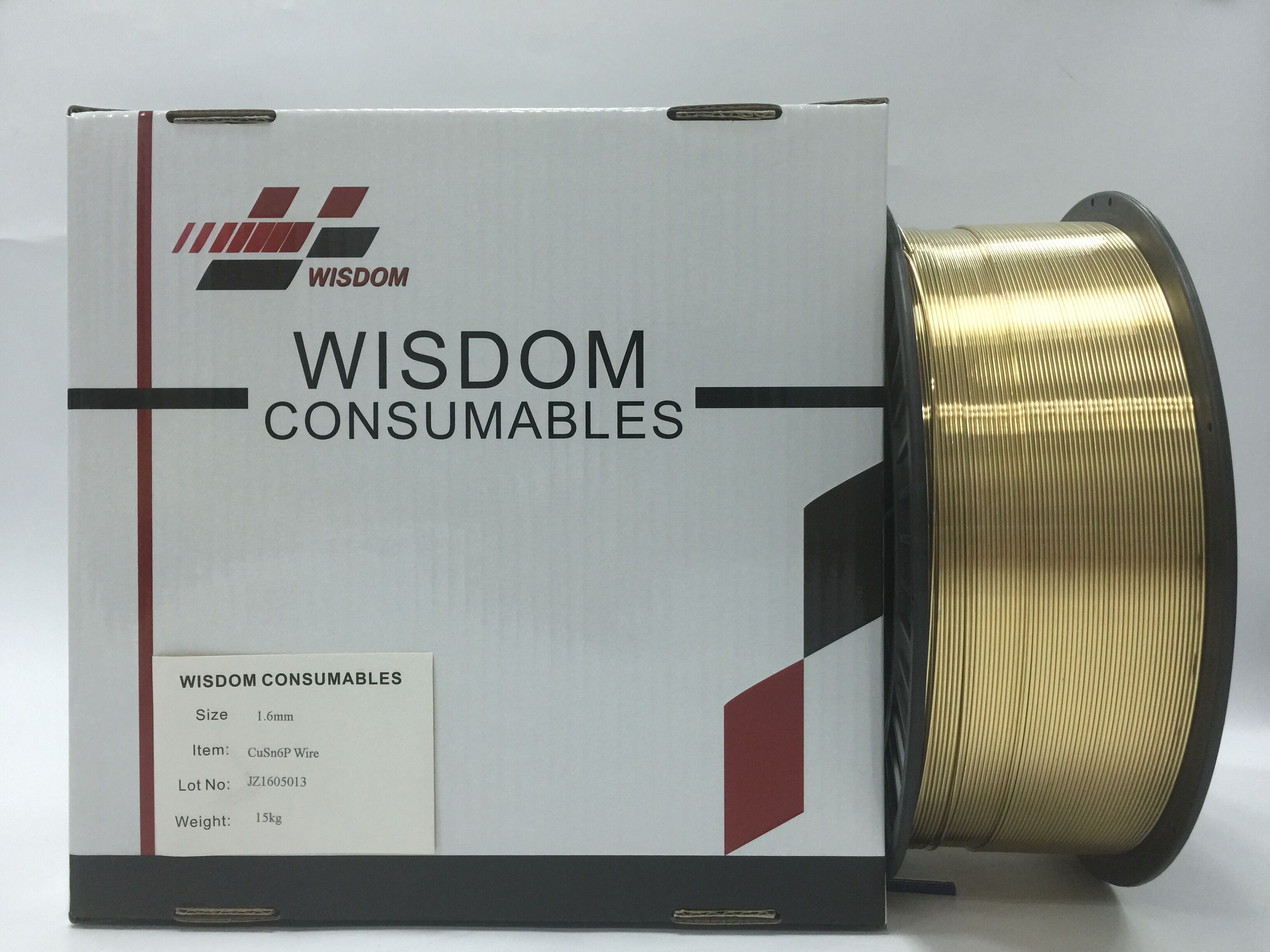

STANDARD SIZE&PACKING

Diameter

Dimension Tolerance

Packing

Wire Weight

1/16"(1.6mm)

+0/-0.05

D 300 Spool

15kgs(33 lbs)/spool

2.0mm

+0/-0.05

D 300 Spool

15kgs(33 lbs)/spool

1/8"(3.17mm)

+0/-0.05

Coil Form

20-400kgs/coil

Other sizes can be produced based on customers’ requirement.

Label

Brand, Neutral or Customized

Delivery

Courier/Air/Sea

Normally we keep stock of 1.6mm, can deliver in 1-3 days.

For mass order, delivery time is depends on the quantity.
