CuNi10

INTRODUCTION

CuNi10 has good properties on mechanical working, good resistance of corrosion. Is easy flowing and produces weld deposits that are porosity free, electrically conductive and color will match that of copper. Can be used for galvanized steel sheet metal or other coated steels.

CHEMICAL COMPOSITION

Ni%

Fe%

Mn%

Cu%

Ti%

Other%

10.5

1

1

Rest

 0.4

<0.5

Characteristic

Alloy Nomenclature
Resistivity (200CμΩ.m)
Max.working Temperature (°C)Tensile Strength (Mpa)Melting point (°C)Density (g/cm3)TCRx10-6/°C (20~600 °C)EMF vs Cu (μV/°C) (0~100 °C)
CuNi10
0.15
250 290 1100 8.9 <50 -25

Advantage:

Resonable price, in stock for regular sizes, short lead time

International production technology, quality guaranteed

100% replacement / refund (delivery included) for problematic items

Spray process

Arc Spray

Arc spraying is the use of electric arc burning in two consecutive fed between the wires to melt the metal, with a high velocity gas stream molten metal atomization, and the atomization of the sprayed metal particles so that they accelerate the work to form a coating technology .

Flame Spray

The use of a flame as the heat source, the metal and non-heated to a molten state, forming a mist flow in the state of high-speed air jet to the substrate, the injection of the molten minute particles impact upon the substrate above, plastic deformation, into a sheet shape superimposed sedimentary layers.

Application

Glass industry

Ceramic industry

Home appliance

Chemical industry, metallurgy mechanism

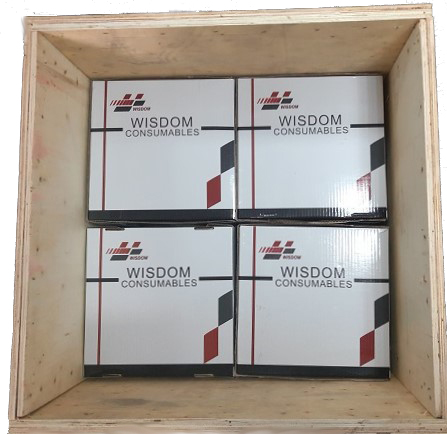

Packing and shipping

STANDARD SIZE&PACKING

Diameter

Dimension Tolerance

Packing

Wire Weight

1/16"(1.6mm)

+0/-0.05

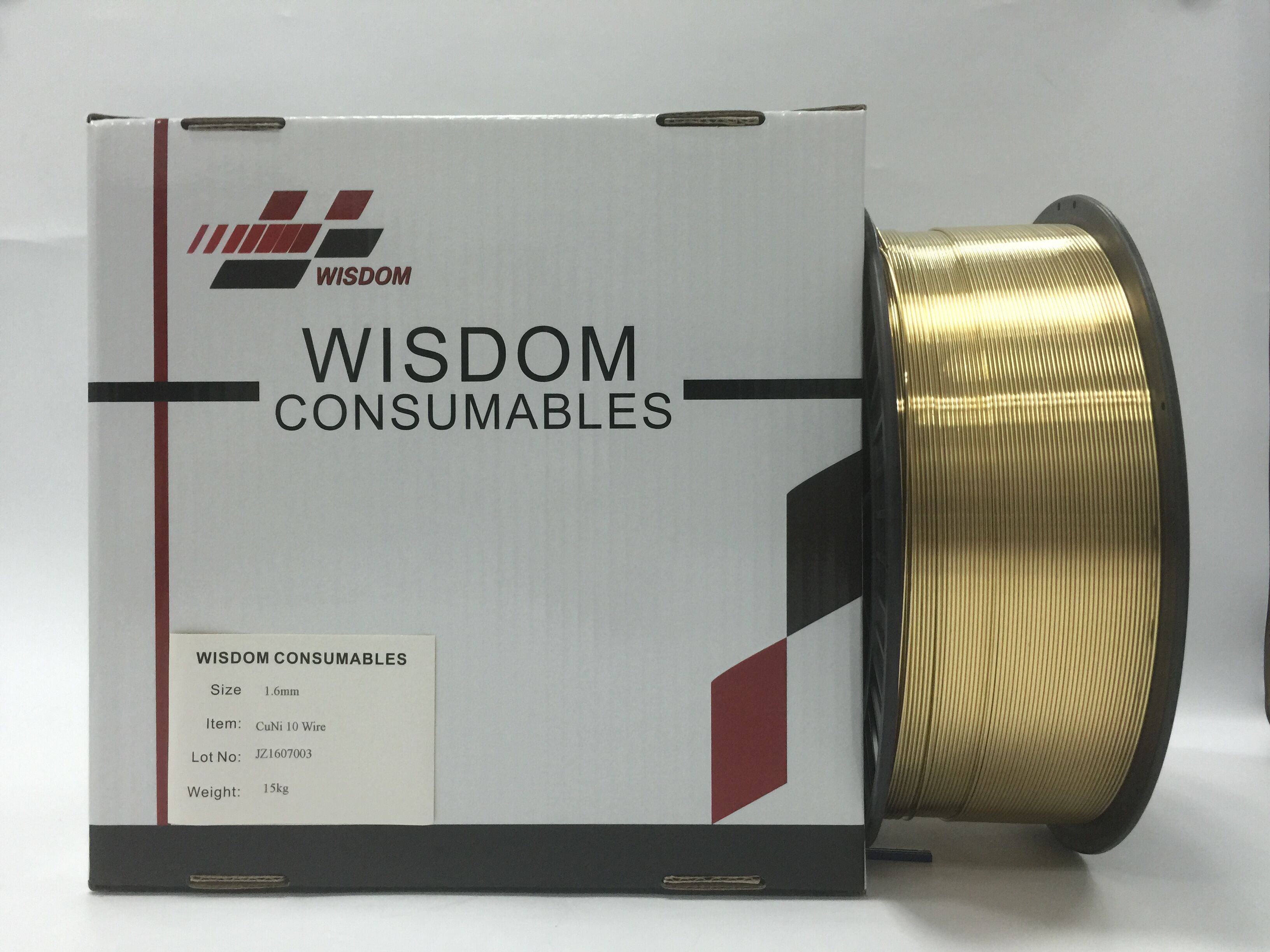

D 300 Spool

15kgs(33 lbs)/spool

2.0mm

+0/-0.05

D 300 Spool

15kgs(33 lbs)/spool

1/8"(3.17mm)

+0/-0.05

Coil Form

20-400kgs/coil

Other sizes can be produced based on customers’ requirement.

Label

Brand, Neutral or Customized

Delivery

Courier/Air/Sea

Normally we keep stock of 1.6mm, can deliver in 1-3 days.

For mass order, delivery time is depends on the quantity.
