Data SheetCuAl10
PRODUCT
Introduction
CuAl 10 is an iron-bearing Copper Aluminium MIG & TIG filler metal primarily designed for joining aluminium bronze, silicon bronze and manganese bronze, some high strength Copper-Zinc and Copper-Nickel alloys as well as many ferrous metals such as steel, Cast iron and galvanized iron. It is also good for joining dissimilar metals such as cast iron, carbon steels, copper, bronze and copper-nickel material. Weld deposits exhibit high mechanical properties, tensile strength, yield strength and hardness.
Equivalent: TAFA 10T, Metco Sprabronze AA, PMET 590
Chemical Composition
|
Cu% |
Al% |
Fe% |
Other% |
|---|---|---|---|
|
Rest |
9.5 |
1 |
<0.5 |
Physical Properties
|
Solids Temperature |
Density |
Elongation |
Liquids Temperature |
Tensile Strength |
|---|---|---|---|---|
|
1030°C |
7.6kg/dm3 |
20% |
1090°C |
621N/mm2 |
Typical Deposit Characteristics
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Wire Coverage |
|---|---|---|---|---|
| HRB 67 |
7000 psi | 10 lbs / hr /100A | 75% | 0.9 oz / ft2 / mil |
Diamenter (mm)
1.6, 2.0, 3.17
Advantage
1. Reasonable price, regular sizes stock, short delivery time
2. International production technology, quality guaranteed
3. 100% replacement / Refund for problematic items
Spray process
Arc Spray
Arc spraying is the use of electric arc burning in two consecutive fed between the wires to melt the metal, with a high velocity gas stream molten metal atomization, and the atomization of the sprayed metal particles so that they accelerate the work to form a coating technology .
Flame Spray
The use of a flame as the heat source, the metal and non-heated to a molten state, forming a mist flow in the state of high-speed air jet to the substrate, the injection of the molten minute particles impact upon the substrate above, plastic deformation, into a sheet shape superimposed sedimentary layers.
APPLICATION
Cavitation
Reclamation
Bearing Areas
Bond coat, Ship constructions
Aluminum Bronze Components
Hard, dense coatings for machine element restoration
Pump impellers, armature bushings, motor bearings, air brake valves, valve plugs and plungers

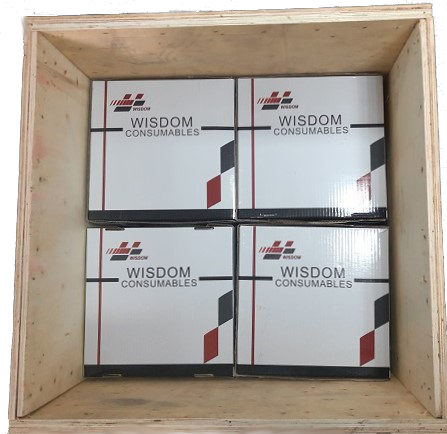

PACKING AND SHIPPING
Standard Size & Packaging
|
Diameter |
Dimension Tolerance |
Packing |
Wire Weight |
|---|---|---|---|
|
1/16"(1.6mm) |
+0/-0.05 |

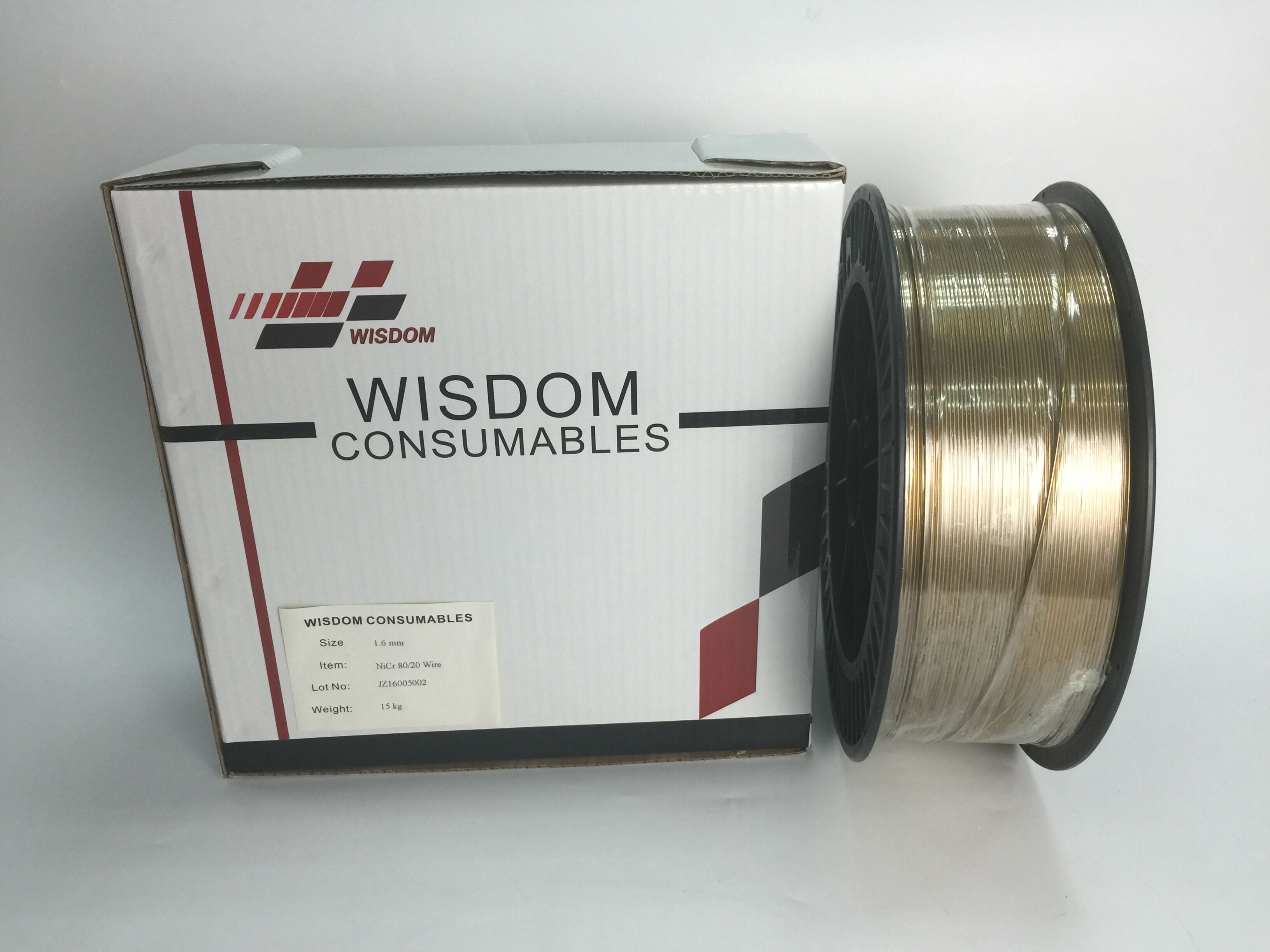

D 300 Spool |
15kgs(33 lbs)/spool |
|
2.0mm |
+0/-0.05 |
D 300 Spool |
15kgs(33 lbs)/spool |
|
1/8"(3.17mm) |
+0/-0.05 |
Coil Form |
20-400kgs/coil |
Other sizes can be produced based on customers’ requirement.
Label
Brand, Neutral or Customized
Lead time
Normally we keep stock of 1.6 mm, can deliver in 1 - 3 days.
For mass order, lead time depends on quantity
Delivery
Courier, Air, Sea
