AlMnMg5

INTRODUCTION

Magnesium manganese 5 has the advantage of high corrosion resistant,dense coating,hign strength widely used in the construction industry.

CHEMICAL COMPOSITION%

Al

Mg

Mn

Bal

5%

0.4%

Diamenter (mm)

1.6mm , 2.0mm , 3.17mm , 4.76mm

Advantage:

Resonable price, in stock for regular sizes, short lead time

International production technology, quality guaranteed

100% replacement / refund (delivery included) for problematic items

Spray process

Arc Spray

Arc spraying is the use of electric arc burning in two consecutive fed between the wires to melt the metal, with a high velocity gas stream molten metal atomization, and the atomization of the sprayed metal particles so that they accelerate the work to form a coating technology .

Flame Spray

The use of a flame as the heat source, the metal and non-heated to a molten state, forming a mist flow in the state of high-speed air jet to the substrate, the injection of the molten minute particles impact upon the substrate above, plastic deformation, into a sheet shape superimposed sedimentary layers.

Application

Widely used in the airport terminal building, hangar, stations and major transport hubs, convention and exhibition centers, stadiums, exhibition halls, large public facilities, public service buildings, shopping malls, commercial facilities, residential roofing and other construction and wall system.

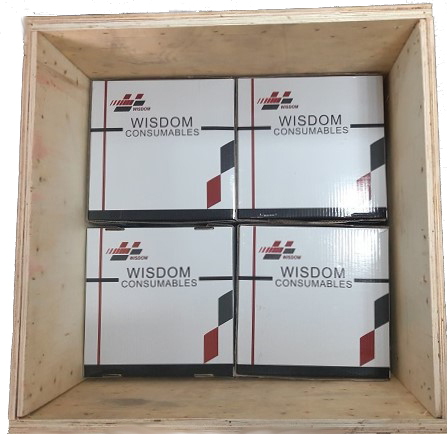

Packing and shipping

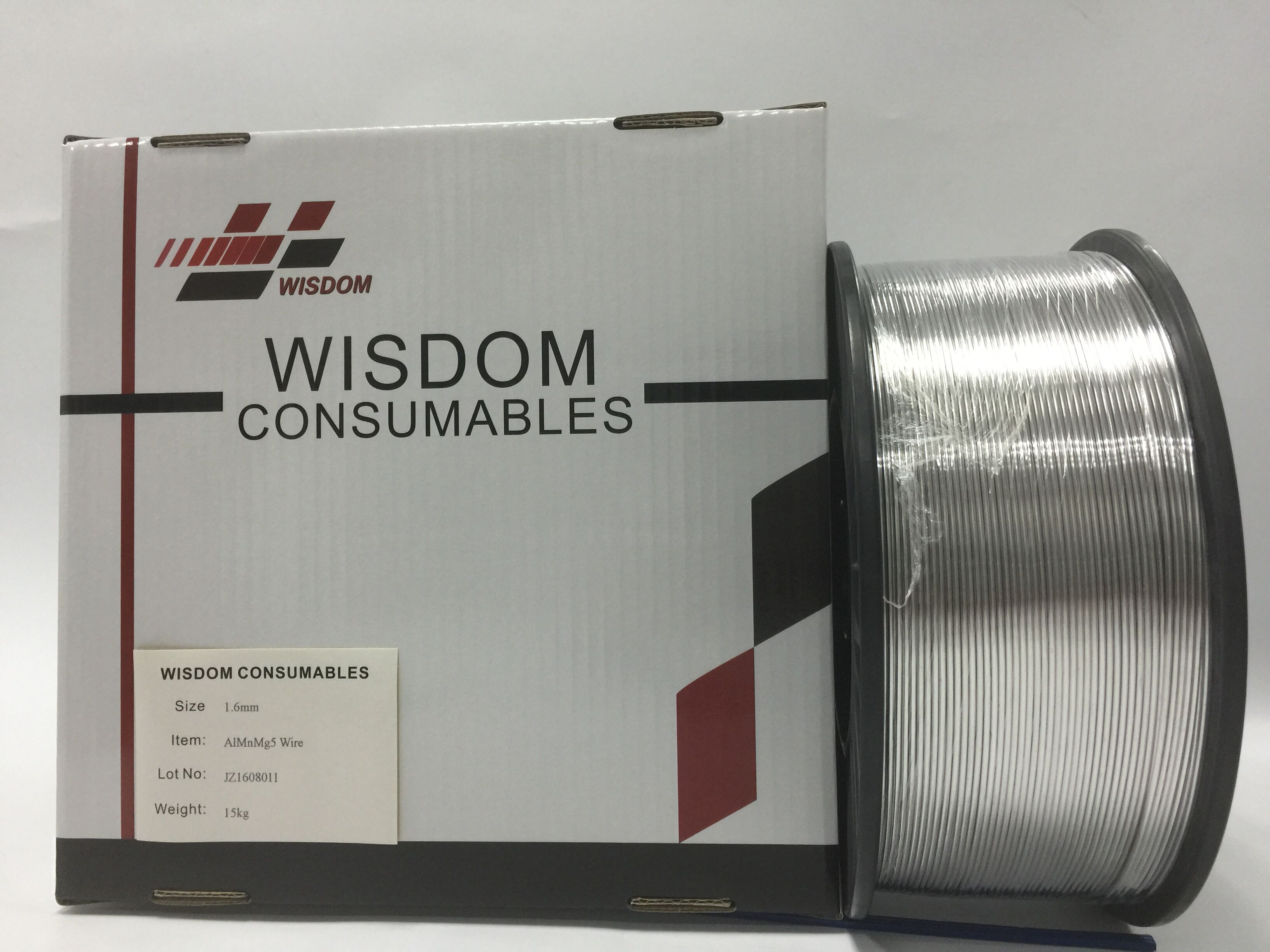

STANDARD SIZE&PACKING

Diameter

Dimension Tolerance

Packing

Wire Weight

1/16"(1.6mm)

+0/-0.05

D 300 Spool

15kgs(33 lbs)/spool

2.0mm

+0/-0.05

D 300 Spool

15kgs(33 lbs)/spool

1/8"(3.17mm)

+0/-0.05

D 300 Spool/Coil Form/Drum

15kgs(33 lbs)/spool 20-400kgs/coil Drum

4.76mm

+0/-0.05

D 300 Spool/Coil Form/Drum

15kgs(33 lbs)/spool 20-400kgs/coil Drum

Label

Brand, Neutral or Customized

Delivery

Courier/Air/Sea

Normally we keep stock of 1.6mm, can deliver in 1-3 days.

For mass order, delivery time is depends on the quantity.
