AlMg5

INTRODUCTION

AlMg5 is a general-purpose type aluminum thermal spray wire that contain 5% magnesium additives, resulting in high intensity, favorable corrosion resistance and excellent color compatibility after anodizing.

CHEMICAL COMPOSITION%

Al

Mg

Bal

5%

Equivalent

 Metco AlMg

Diamenter (mm)

1.6mm , 2.0mm , 3.17mm , 4.76mm

Advantage:

Resonable price, in stock for regular sizes, short lead time

International production technology, quality guaranteed

100% replacement / refund (delivery included) for problematic items

Spray process

Arc Spray

Arc spraying is the use of electric arc burning in two consecutive fed between the wires to melt the metal, with a high velocity gas stream molten metal atomization, and the atomization of the sprayed metal particles so that they accelerate the work to form a coating technology .

Flame Spray

The use of a flame as the heat source, the metal and non-heated to a molten state, forming a mist flow in the state of high-speed air jet to the substrate, the injection of the molten minute particles impact upon the substrate above, plastic deformation, into a sheet shape superimposed sedimentary layers.

Application

Welding Structural Steels
General Fabrication, Automobile, Pressure Vessels, LPG Cylinders
Automotive industry, construction machinery production, shipbuilding
Metallurgical equipment production, bridges, civil works, petrochemical industry, production of pressure vessels of boilers,locomotive vehicles

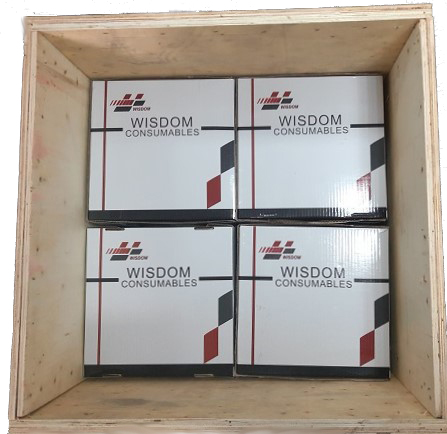

Packing and shipping

STANDARD SIZE&PACKING

Diameter

Dimension Tolerance

Packing

Wire Weight

1/16"(1.6mm)

+0/-0.05

D 300 Spool

15kgs(33 lbs)/spool

2.0mm

+0/-0.05

D 300 Spool

15kgs(33 lbs)/spool

1/8"(3.17mm)

+0/-0.05

D 300 Spool/Coil Form/Drum

15kgs(33 lbs)/spool 20-400kgs/coil Drum

4.76mm

+0/-0.05

D 300 Spool/Coil Form/Drum

15kgs(33 lbs)/spool 20-400kgs/coil Drum

Label

Brand, Neutral or Customized

Delivery

Courier/Air/Sea

Normally we keep stock of 1.6mm, can deliver in 1-3 days.

For mass order, delivery time is depends on the quantity.
